Auxiliary Engine

Indexing box

The combination of RU180 and RU140 index box greatly improves the stability and service life of the machine.

Driving part

The transmission CAM of the station is improved, the groove wheel drive is made of high quality steel, and the pressure spring is added to help the swing rod run stably.

Slotted CAM

The mechanical transmission part of the new layout design uses "internal CAM" to replace the traditional "rod" filling transmission mechanism, which increases the filling force and makes the machine run more quiet and stable.

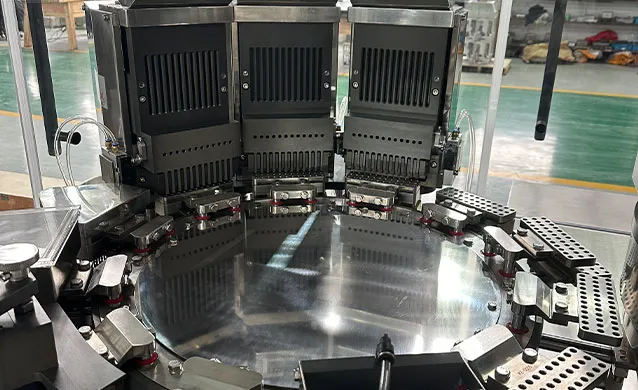

Enclosed station turntable

With imported silicone sealing ring, reduce the situation of powder being brought into the turntable due to the expansion of the movement shaft, and smooth operation, high precision;

Enclosed station turntable

It solves the cumbersome problem of assembling and disassembling molds, reduces the labor intensity of employees, and strengthens the service life of station turntable.

Enclosed station turntable

It solves the cumbersome problem of assembling and disassembling molds, reduces the labor intensity of employees, and strengthens the service life of station turntable.

The 3 D chassis adjustment mechanism

The natural deformation degree of the measuring disc and copper ring is eliminated, the gap is uniform, and the phenomenon of powder leakage is reduced.

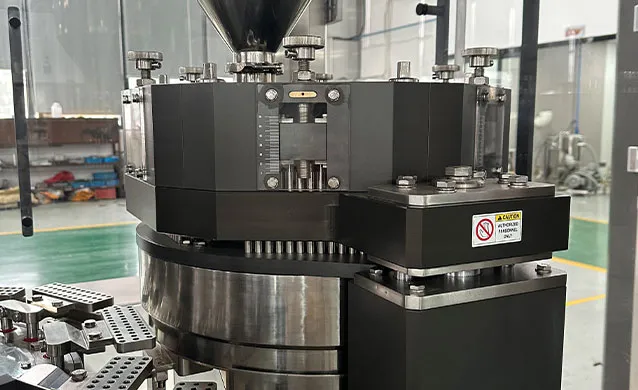

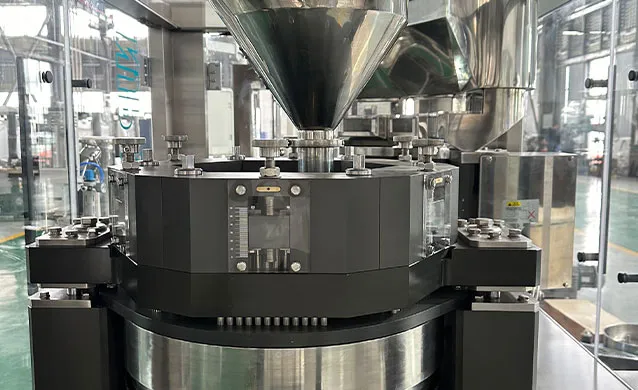

Metering tray and copper pad

Easy to disassemble, easy to clean; Ensure that the difference of loading is within the acceptable range.

Locking device

The front ramp allows the capsule to be locked in advance to avoid the phenomenon of cap cutting and flying of the old type of lock device.

Locking device

The locking cleaning device is added, and the locking bag cleaning block works at the same time to remove the fine dust raised between the upper and lower molds.

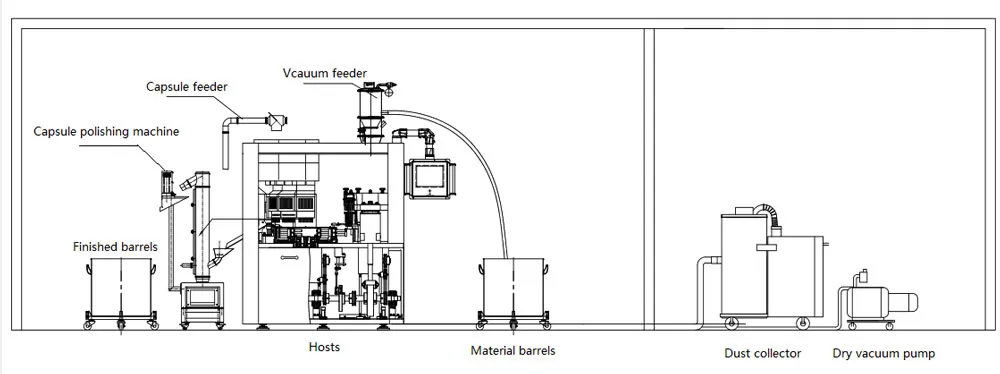

Auxiliary Equipment

Hand feed

Lifter feeder (option)

Vacuum feeder (option)

Hand capsule

Automatic bag feeder (optional)

Capsule polishing machine (optional)

Sorting capsule polisher (optional)

Vertical capsule polishing machine (optional)

Metal Detector (optional)

Industrial vacuum cleaner

Hand feed

Add the material to the hopper manually
The dust is larger, and the labor intensity is higher
No cost, suitable for smaller batch production

Lift feeder (optional)

Material pipe with soft connection charging
The feeding process is closed, safe and hygienic
Suitable for mixing and feeding to solve the problem of stratification

Vacuum feeder (option)

Compact structure, airtight, no pollution, safety and health, low noise
Easy to install/operate, fast conveying speed
Suitable for the height of 2.7m and above the floor workshop

Hand capsule

Capsules are manually added into the capsule hopper.
Suitable for smaller batch production

Automatic bag feeder (optional)

The bottom capsule tube is connected with compressed air, and the automatic capsule feeder delivers the capsule to the capsule bucket without manually adding the capsule.
The automatic bag feeder is easy to operate and can automatically start and stop feeding, ensuring the continuity of the machine operation.

Capsule polishing machine (optional)

It can remove the dust and static electricity on the surface of the capsule and improve the surface smoothness.
Adopting stepless speed regulating motor, the hopper height can be adjusted.

Sorting capsule polisher (optional)

In addition to removing dust and polishing, eliminating static electricity, it can also automatically remove the capsule with slight load, empty shell, debris and body separation.
Adopt frequency conversion speed regulation, speed sensitive and reliable can withstand large starting torque, synchronous belt output power to achieve low noise operation.

Vertical capsule polishing machine (optional)

It has the functions of capsule polishing, sorting and lifting, leaving a high space for connecting subsequent equipment.
The inlet and outlet can be adjusted 360°, which is convenient for production and saves space.
The quick mounting connection structure makes the disassembly and installation of the machine more convenient and fast.

Metal Detector (optional)

Metals can be separated from materials
Integrated metal foreign object removal system, even if the metal is sealed in the product can be detected
Available in various calibers and sizes for all practical applications
Compact and easy to install

Industrial vacuum cleaner

It is used to remove and collect the residual dust under the filling station of the capsule filling machine, and the residual waste in the mold hole

Related Products

CFK 1500 Automatic capsule filler machine

No.of segment bores：11

Suitable fof capsule：00#-5#

GZPK 15/17/20 Rotary Tablet Press Machine

No. of station：15/17/20

Max.tablet diameter：25/16/13mm

GZPK 26/32/40 High Speed Rotary Tablet Press Machine

No. of station：26/32/40

Max.tablet diameter：25/16/13mm

GZPK 45/55/75 Double Sided Rotary Tablet Press Machine

No. of station：45/55/75

Max.tablet diameter：25/16/13mm

NEWS & BLOG

Technology accumulation and innovation practice of pharmaceutical equipment manufacturing

In the pharmaceutical industry, the quality and reliability of equipment manufacturing directly affect the compliance and efficiency of pharmaceutical production.

2025.06.06

How an Automatic Capsule Filling Machine Works

Ever wonder how an automatic capsule filling machine turns empty shells into finished capsules? This guide walks through the full working process—from separation to ejection—and explains the key technologies involved.

2026.06.30

Intermittent vs continuous rotary capsule machines: which motion fits your material?

Does your material flow freely or stick, bridge, and segregate? This guide compares intermittent and continuous rotary capsule filling machines by material type—powders, granules, and pellets—to help you match motion to your formulation.

2026.06.25

Output	5000 Capsules/min
No.of segment bores	36
Suitable fof capsule	00#-5#
Total power	15Kw(Standard configuration)
Overall weight	3200Kgs
Overall diemensions	1605(+530)mmX1285(+285)mmX2091mm
Noise	≤80DB（A）
Pressure	0.4 ~ 0.7Mpa
Air consumption	≤15m³
Vacuum	-0.03 ~ -0.06Mpa
Filling error	±3%~±7%

NJP 5000 Pill Capsule Filling Machine
