Auxiliary Engine

Automatic Weight Adjustment

After the production parameters are set, the system can automatically adjust the increase and decrease of the material according to the set filling amount, so as to minimize the difference in the amount of tablets.

Automatic Function of Hydraulic System

The user can set the upper and lower limits of the hydraulic system, and the computer automatically stabilizes the hydraulic pressure between the set values.

Lubrication System Automatic Function

The system controls the lubrication pump according to the lubrication time and interval parameters, and users can adjust the parameters according to actual needs.

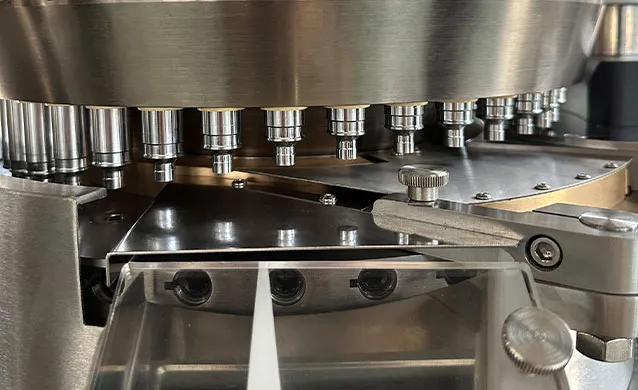

Scrap System

The system can be used for single scrap (custom) and batch scrap. Single piece scrap to achieve a single unqualified tablet blowing into the waste channel; The channel switching solenoid valve automatically transfers to the waste channel, and the drugs are eliminated in batches.

Remove Waste Solenoid Valve

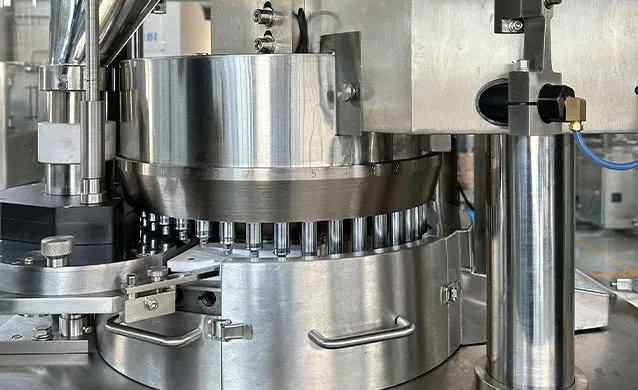

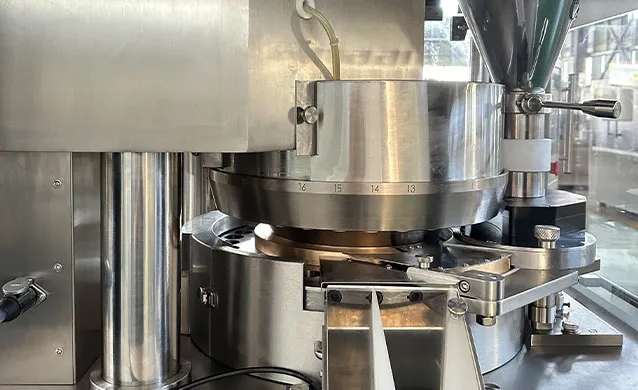

Principal Pressure

Main pressure, prepressure twice forming, large pressure wheel, five-column frame structure, so that the machine has a long pressure time, stable work and load-bearing load without deformation ability. Ensure piece weight accuracy and hardness while maintaining smooth operation and low noise.

Preloading

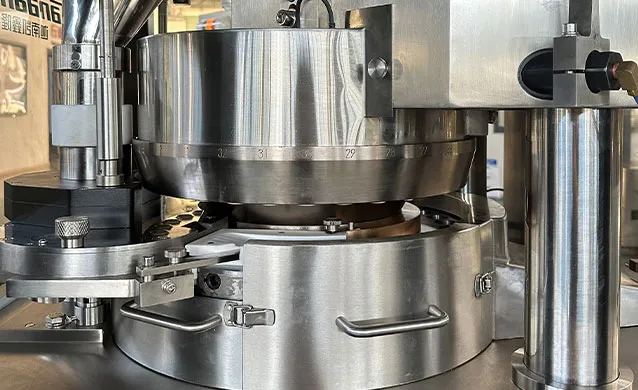

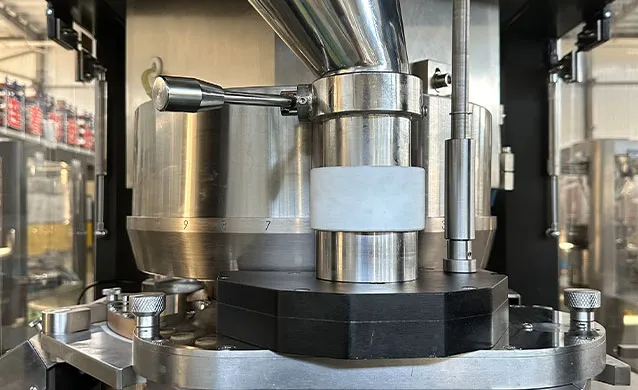

Forced Feeding System

The feeder is easy to disassemble and assemble, easy to clean. High-precision double impeller forced feeding mechanism, with two agitators to force the material into each die hole, so that the difference between the weight of the sheet is smaller, to solve the ordinary sheet press free blanking insufficient filling, working disk dust and cross pollution problems.

High Precision Bearings

Adopting high-precision bearings, smooth transmission, long life and low noise.

High-Precision Guide Rails And Press Wheels

Adopting high-precision guide rails and press wheels; wear-resistant, with good consistency and interchangeability.

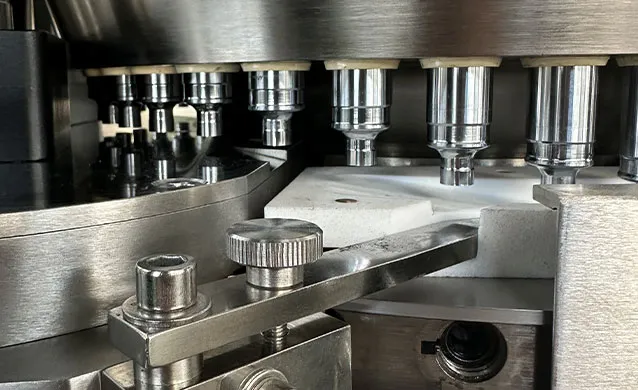

High Precision Punching Plate Combination

Adopting the highest domestic coordinate grinder and other equipments to ensure the dimensional accuracy, positional accuracy and roughness requirements of punching, which makes the work of replacing punching dies easier, greatly reduces labor intensity and improves labor efficiency;

Convex-Concave Center Mold Locking Structure

The contact surface of the top wire of the center punch plate is convex-concave, and the convex-concave surface of the top wire and the ring groove of the center die make a horizontal fit to tighten (face-to-face contact), which ensures that the center die won't be taken out of the tableting machine for a long period of time, which is extremely high in safety and lowest in risk.

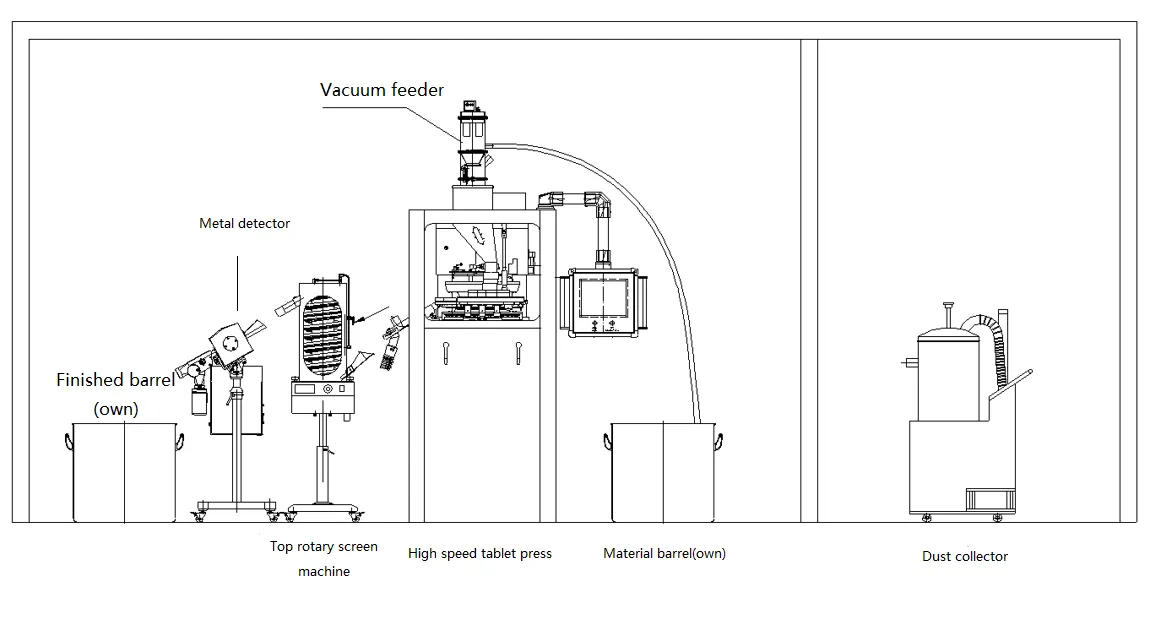

Auxiliary Equipment

Hand feed

Elevator feed (optional)

Vacuum feeder (optional)

Tablet polishing (optional)

Metal Detector (optional)

Industrial vacuum cleaner

Hand feed

Add the material to the hopper manually
High dust, high labor intensity
Suitable for smaller batch production

Elevator feed (optional)

Material pipe with soft connection charging
The feeding process is closed, safe and hygienic
Suitable for mixing and feeding to solve the problem of stratification

Vacuum feeder (option)

Compact structure, airtight, no pollution, safety and health, low noise
Easy to install, easy to operate, fast delivery speed
Suitable for the height of 2.7m and above the floor workshop

Tablet polishing (optional)

Screen machine is a special polishing equipment for tablets, which can complete the dust removal work on the surface of various shapes of tablets.
Multilayer screen structure can effectively isolate tablets and dust.
The amplitude and production speed are continuously adjustable.
It is easy to disassemble and install, easy to use and clean.
Reliable performance, high efficiency, low noise
The entire production process is intuitive and visual.

Metal Detector (optional)

Metals can be separated from materials
Integrated metal foreign object removal system, even if the metal is sealed in the product can be detected
Available in various calibers and sizes for all practical applications
Compact and easy to install

Industrial vacuum cleaner

It is used for dust removal and collection in working turntable

Related Products

CFK 1500 Automatic capsule filler machine

No.of segment bores：11

Suitable fof capsule：00#-5#

GZPK 15/17/20 Rotary Tablet Press Machine

No. of station：15/17/20

Max.tablet diameter：25/16/13mm

GZPK 26/32/40 High Speed Rotary Tablet Press Machine

No. of station：26/32/40

Max.tablet diameter：25/16/13mm

GZPK 45/55/75 Double Sided Rotary Tablet Press Machine

No. of station：45/55/75

Max.tablet diameter：25/16/13mm

NEWS & BLOG

Technology accumulation and innovation practice of pharmaceutical equipment manufacturing

2025.06.06

How to validate fill weight accuracy during capsule machine commissioning

Commissioning a capsule filling machine? This guide walks through fill weight accuracy validation methods, sampling protocols, acceptance criteria, and common failure points to check before production starts.

2026.06.02

Single-station vs double-station capsule fillers: which architecture suits batch sizes under 200k units?

Running batch sizes under 200,000 capsules? This guide compares single-station and double-station filler architectures on changeover time, maintenance complexity, and quality consistency for smaller production runs.

2026.05.29

Model	GZPK-26	GZPK-32	GZPK-40
Capacity (Tablets/h)	160000	210000	260000
No.of station	26	32	40
Max.tablet diameter (mm)	25	16	13
Rotation speed (r/min)	11-102	11-105	11-105
Main.tablet diameter (KN)	100	80	80
Pre-pressure (KN)	20	20	20
Main.filling depth (mm)	20	16	16
Dia.of.die (mm)	38.1	30.16	24.01
Length of punch (mm)	133.6	133.6	133.6
Total power (Kw)	7.5
Overall weight (Kg)	1800
Overall diemensions (mm)	1170×1000(+530)×1950
Noise	≤75DB(A)

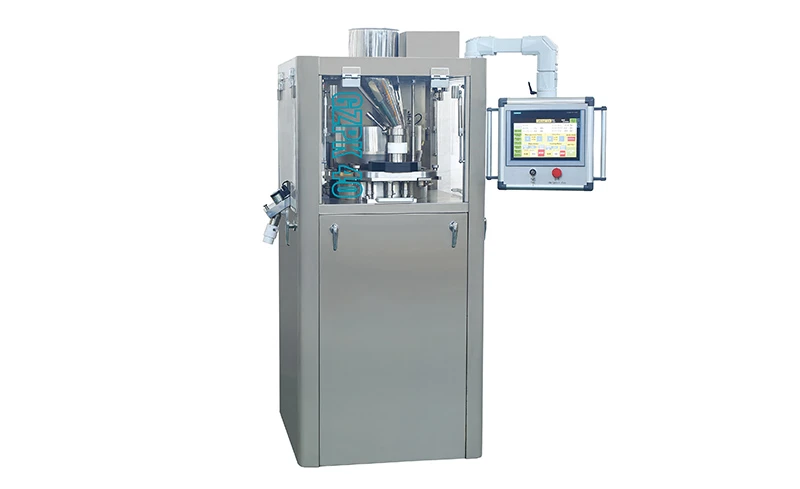

GZPK 26/32/40 High Speed Rotary Tablet Press Machine

Reference display charts

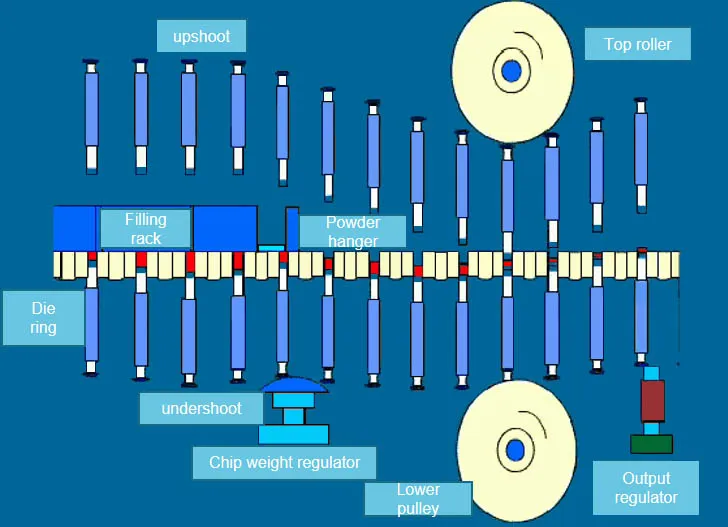

Working principle expansion diagram
