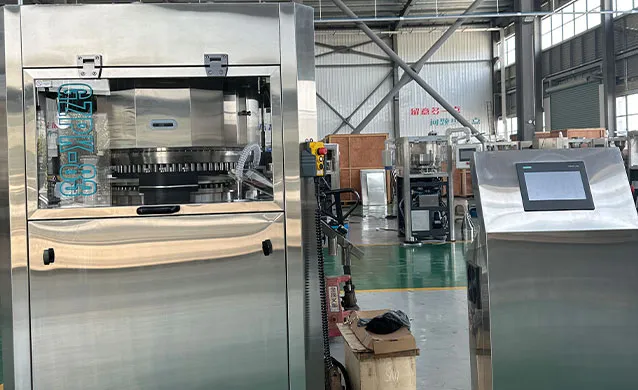

GZPK 83 Automatic High Speed Rotary Tablet Press Machine

The GZPK 83 Automatic High Speed Rotary Tablet Press Machine features a fully enclosed, GMP compliant pressing chamber and B&R PCC control system. Ensures ultra precise dosing and minimal cross contamination for critical applications.

No. of station：83/65/51

Max.tablet diameter：13/16/25mm

Caoacuty：710000/560000/440000 tablets/h

Get a Quote Manual Download

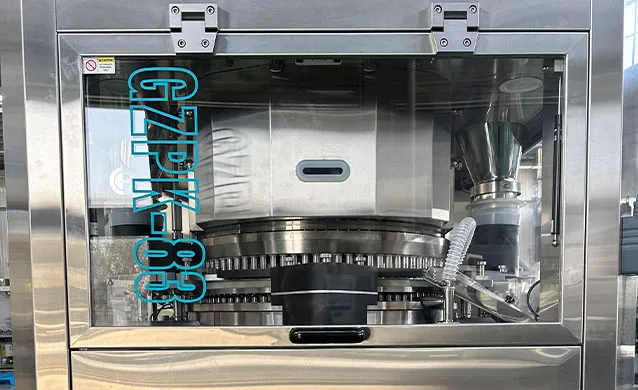

GZPK-83 Automatic High Speed Rotary Tablet Press Machine

Product Overview

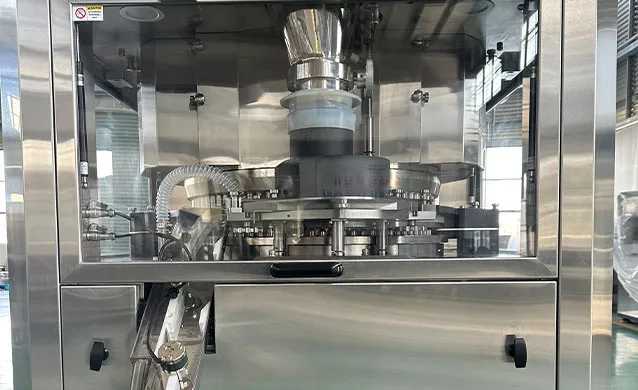

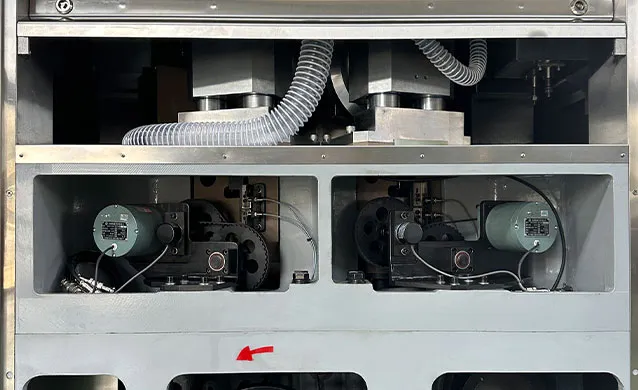

The lower part of the machine is sealed by four stainless steel doors with porous material inside, and contains various driving devices to ensure safety and reduce noise. The process of tablet pressing is completed by five steps: filling, measuring, pre-pressing, main pressing and tablet drawing. The operation of the tablet press is completely controlled by the touch screen on the electric control cabinet.

Equipment Parameters

Model	83	65	51
No. of station	83	65	51
Caoacuty(tablets/h） MAX OR MIN	710000 160000	560000 120000	440000 98000
Rotation speed(rpm)	16-72	16-72	16-72
Max.tablet diameter	13	16	25
Main pressure	100KN	100KN	100KN
Pre-pressure	100KN	100KN	100KN
Max.filling depth	16mm	16mm	20mm
Maximum tablet thickness mm	8.5	8.5	8.5
Pitch circle diameter mm	720	720	720

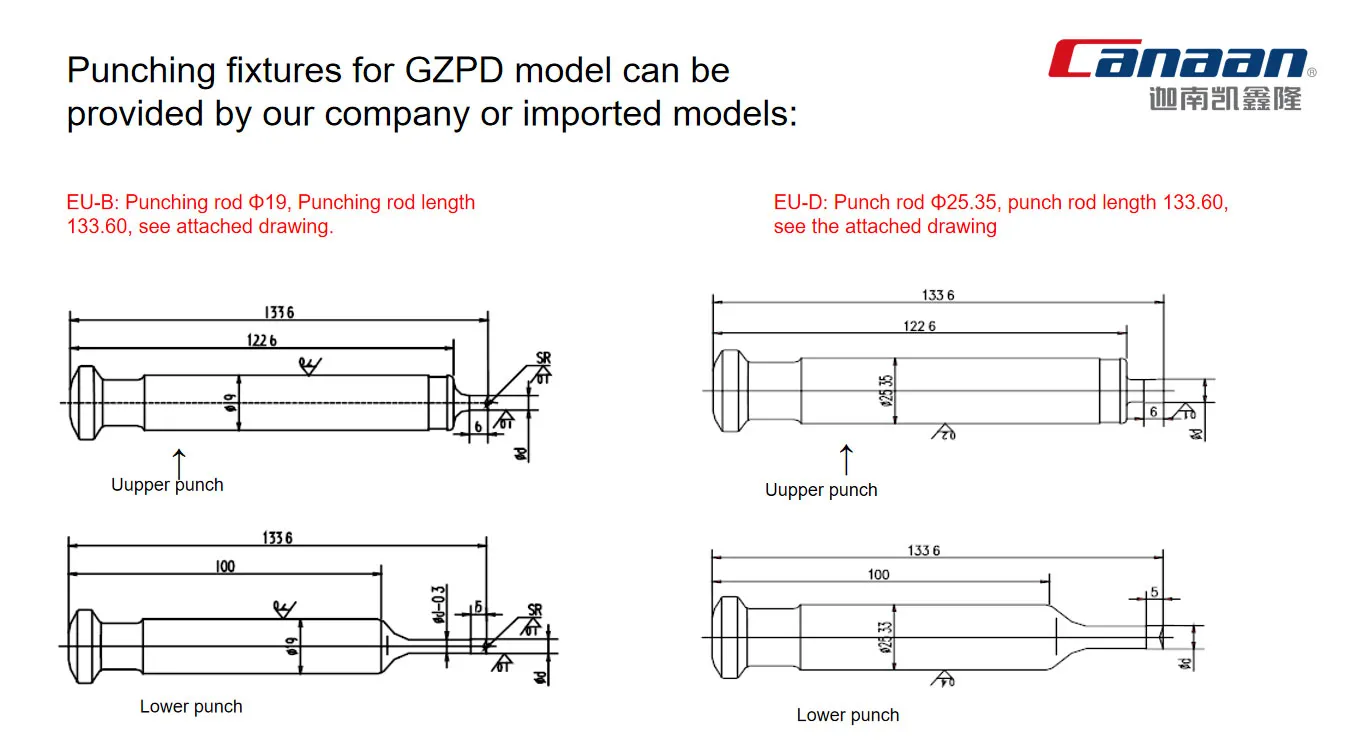

Shank diameter mm	19	19	25.35
Middie height	22.22	22.22	23.8
Can press shaped pieces	YES	YES	YES
Net weight kgs	5000	5000	5000

Auxiliary Engine

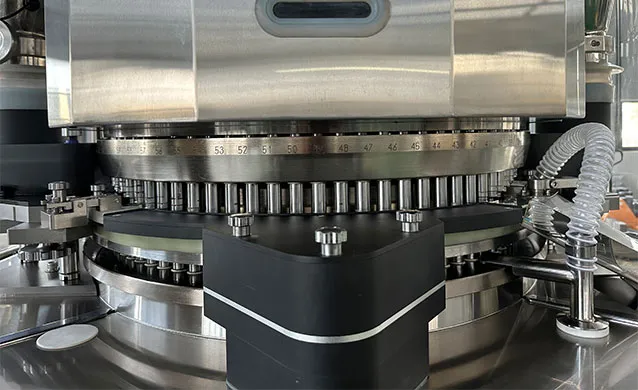

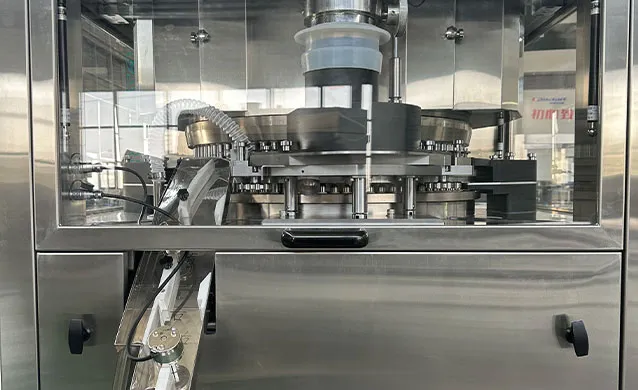

High precision turntable

Pressure support system for identical workstations

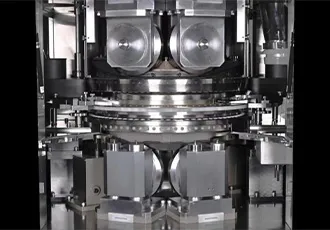

Pressure wheel assembly (same size and interchangeable)

stay on track

general market

Auxiliary Equipment

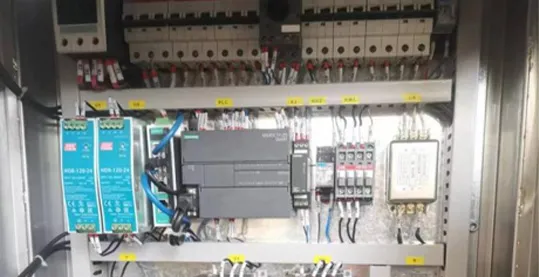

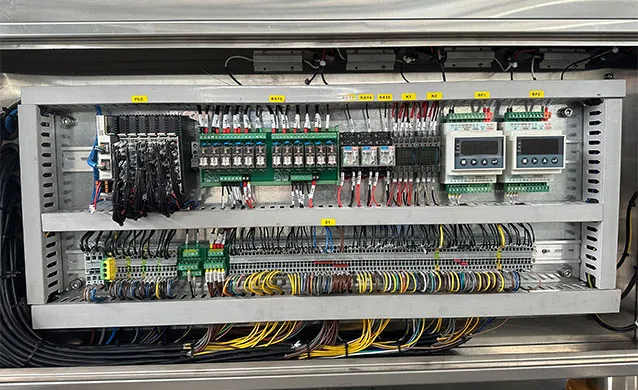

B&R PCC control systems and operating systems

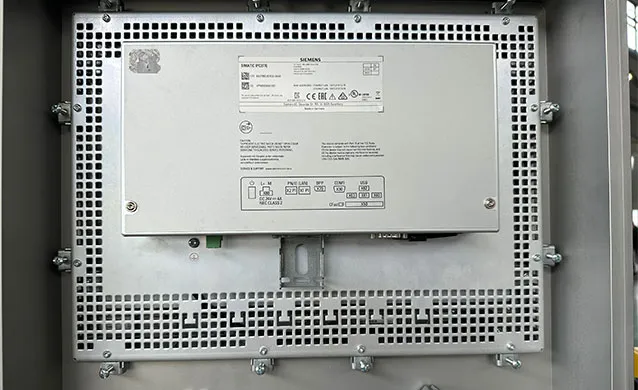

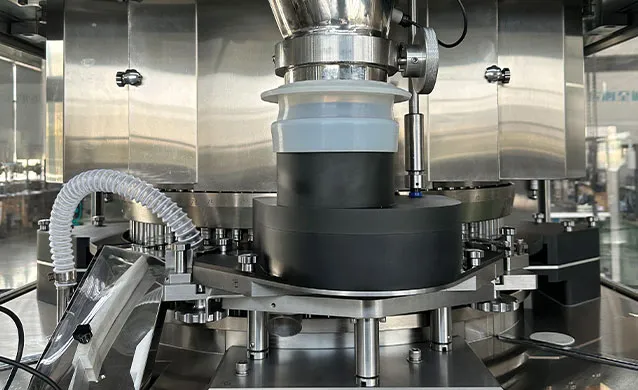

The electric control cabinet is independent of the main machine, the electric control area is separated from the production area, the safety and hygiene coefficient is greatly improved; Adopting 10-inch touch screen automatic control, no hand wheel operation, highly automated production; All production information can be displayed, stored, extracted and changed; Different levels of user passwords can be set; Full-automatic servo motor control, adjusting the metering guide, controlling the depth of the filler, ensuring high precision of the slice difference; Three-pulp packing system: Upper impeller to increase the fluidity of the powder, equalize the density of the powder The lower impeller is used for filling and metering to ensure the uniformity of filling
